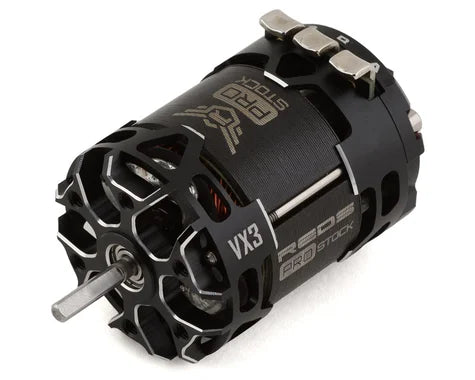

The REDS VX3 Pro Stock 540 "High Torque" Sensored Brushless Motor is a high performance two pole motor designed specifically for pro stock racing. This motor features improved internal structure with a redesigned stator for extreme performance and lower temperatures. The high quality copper wire and low resistance collector rings allow for very low internal resistance, creating more power with less heat. Finishing off the motor, a 7075-T6 aluminum housing with extreme cutouts maximize heat dissipation and cooling effect.

• High grade copper wires for low internal resistance
• Unique motor housing for improved heat dissipation and maximized cooling
• Precision balanced Neodymium rotor for improved power and torque
• Silver plated solder tabs for added longevity

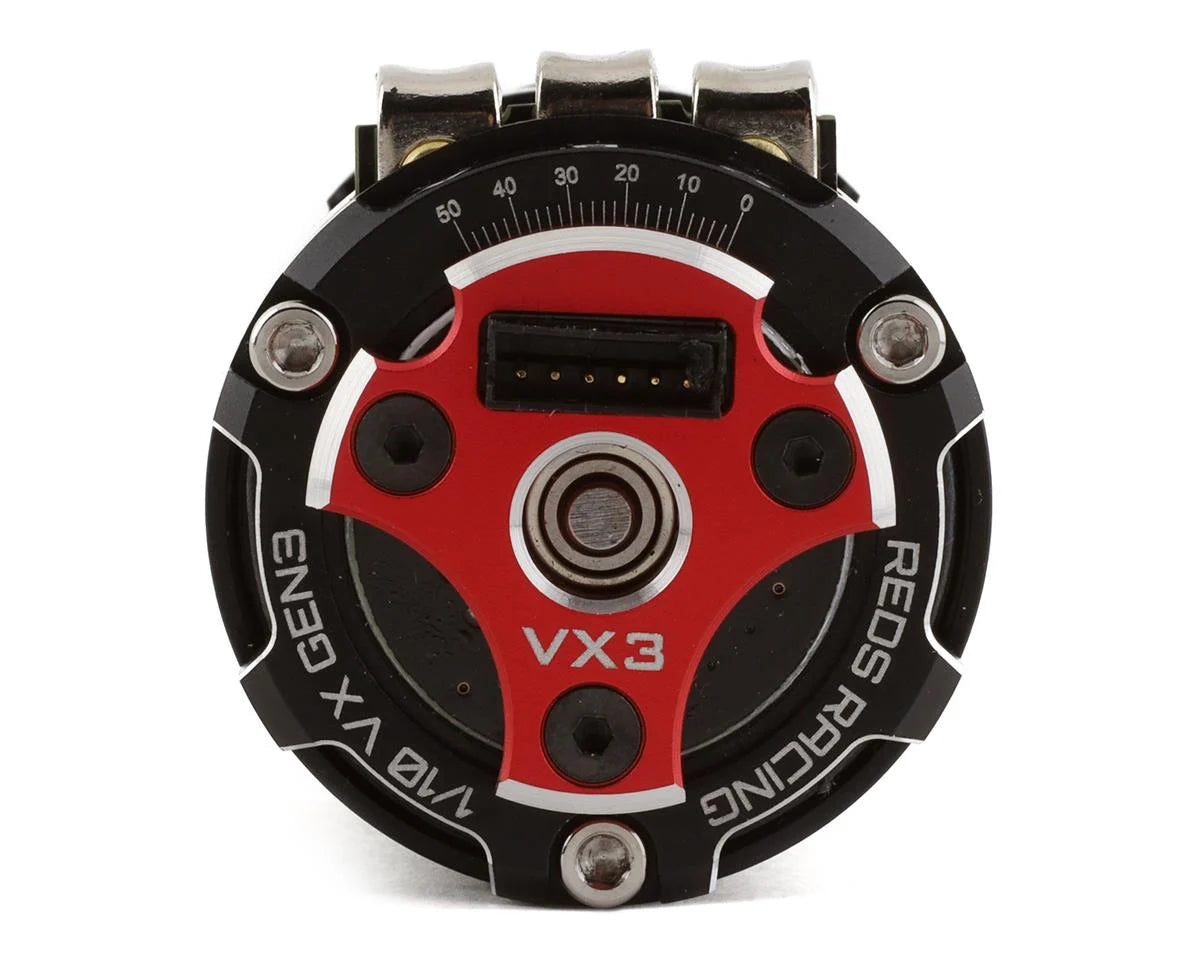

• Mechanical timing can be adjusted from 0-50°
• Designed for stock racing

Turn: 13.5T

Rotor: 12.5mm

Motor Diameter: 35.8mm

Motor Length: 51.4mm

Shaft Diameter: 3.17mm

kV: 3780

Watts: 255W

Peak Current: 35A

Weight: 145g

Category: Stock Racing

ROAR Approval: Pending

• (1) REDS VX3 Pro Stock Motor

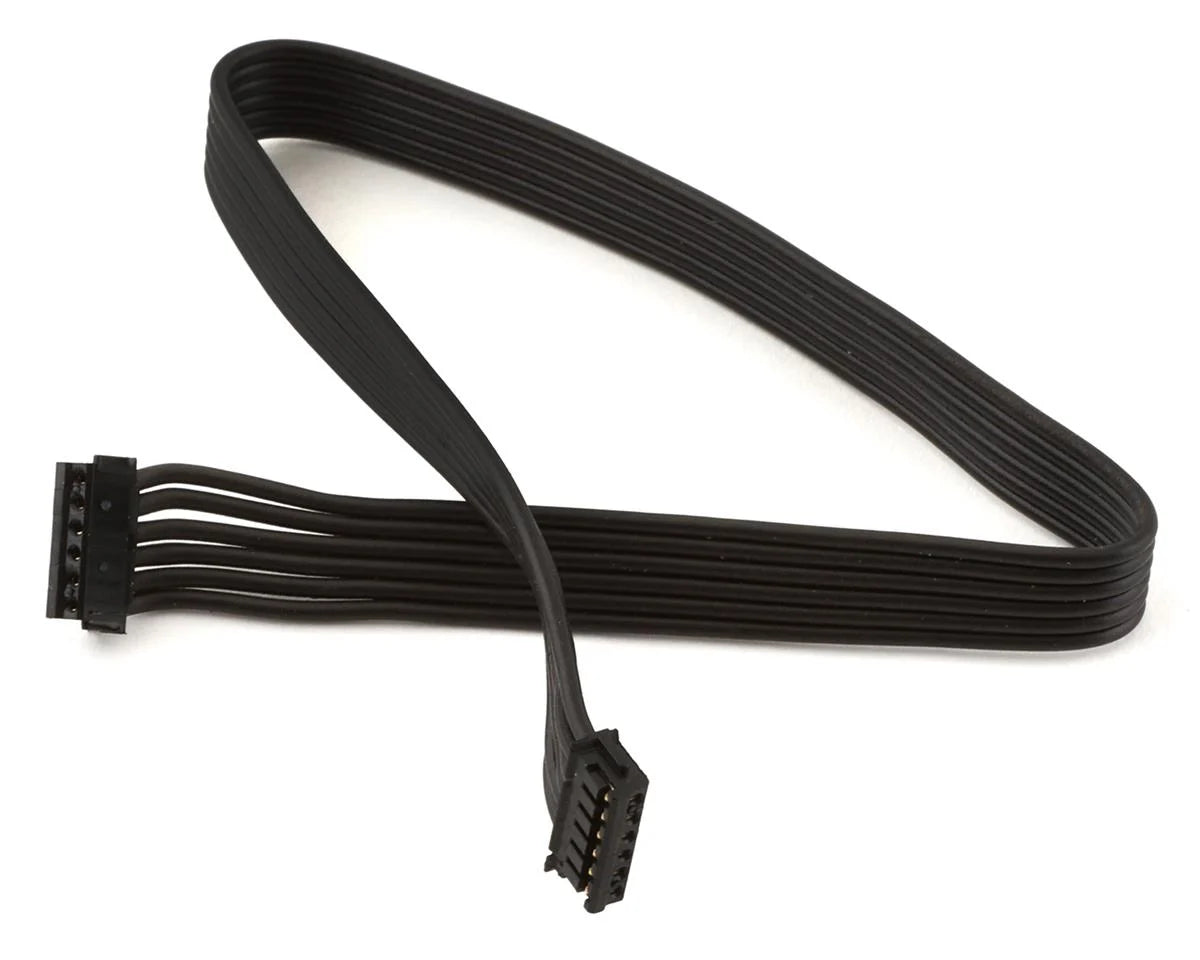

• (1) Sensor Wire
