MODEL 37254-8: Rustler® 2WD XL-5™: 1/10 scale stadium truck: fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5 electronic speed control, 8.4 volt NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and clipless painted body.
What’s In The Box:
- Rustler 2WD with XL-5 ESC and Titan® 550 motor
- TQ 2.4 GHz radio system
- Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
- 4-amp USB-C fast charger
- High quality maintenance tools
What You’ll Need:
MODEL SPECS
| Name: |
Rustler 2WD HD w/USB-C |
| Type: |
Stadium Truck |
| Speed: |
35+ mph with 7-cell battery |
| Skill Level: |
1 |
| Scale: |
1/10 |
| Weight: |
3.73 pounds (1.69 kg) |
| Length: |
17.5 inches (445 mm) |
| Width: |
12.25 inches (311 mm) |
| Track: |
12.25 inches (311 mm) |
| Height: |
7 inches (178 mm) |
MOTOR SPECS
| Name: |
Titan® 12T 550 |
| Type: |
High-speed brushed motor |
| Weight: |
8.47 ounces (240 g) |
| Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: |
1.41 inches (36 mm) |
| Shaft Size: |
3 mm |
| Connector Type: |
Bullet |
ESC SPECS
| Name: |
Waterproof XL-5 ESC with low-voltage detection |
| Type: |
Brushed |
| Case Size: |
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: |
2.44 ounces (69 g) |
| Motor Connectors: |
Bullet |
| Battery Connectors: |
Traxxas High-Current Connector |
| Power Wire: |
14 gauge |
-
Clipless Stadium Truck Body
- Pre-painted body with applied decals
- Aggressive, aerodynamic body with rear wing
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
-
High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
-
Titan® 550 12T Brushed Motor
- Internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
-
Extreme Heavy-Duty Parts Installed
- Strengthened caster blocks, axle carriers, and steering blocks
- HD suspension arms
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Sealed watertight receiver box keeps the receiver dry
-
Includes Battery and USB-C Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
-
Easy Access Battery Compartment
- Accepts NiMH 6 and 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
-
Transmission and Driveline
- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
-

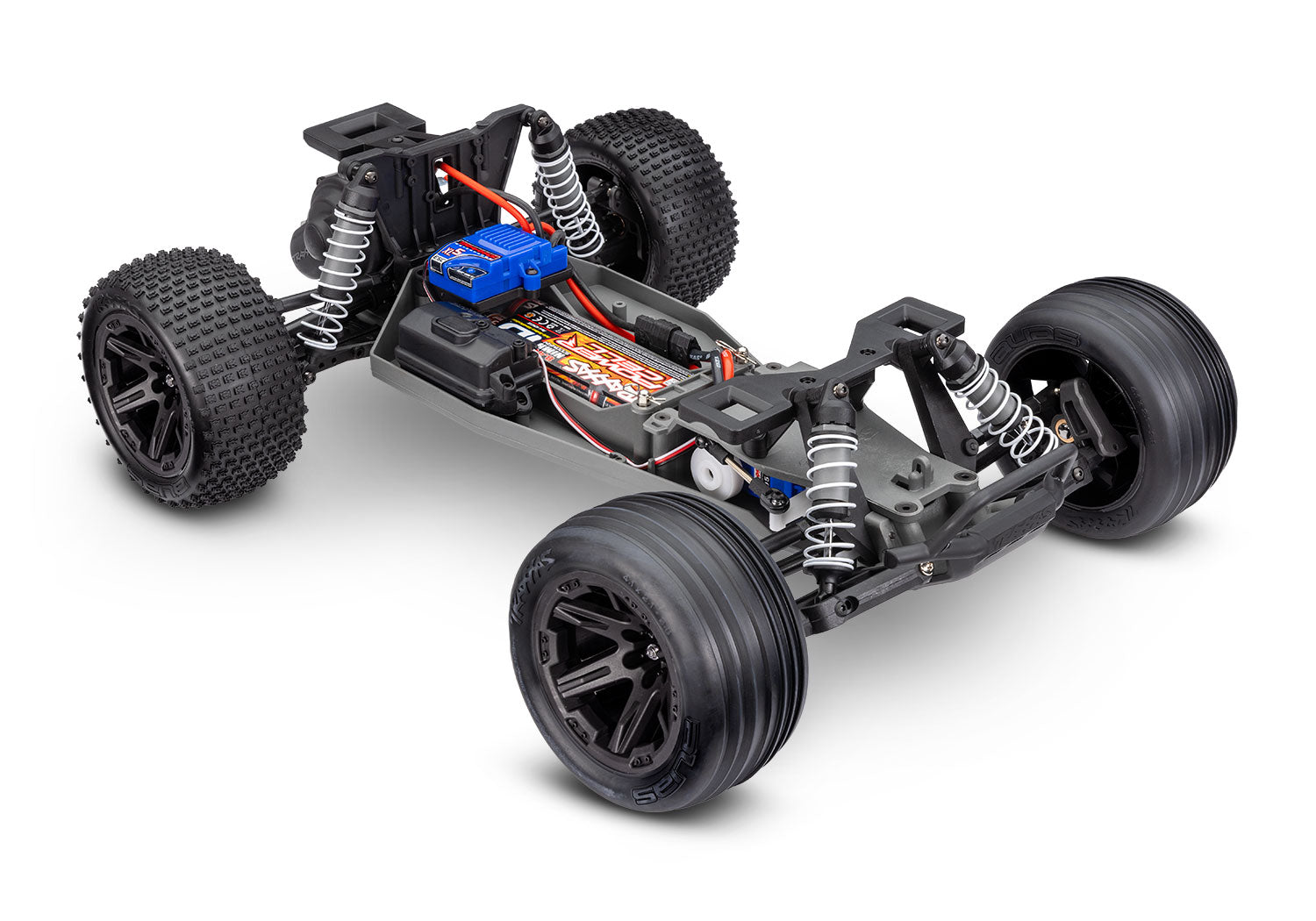

Tough Fiber-Composite Monocoque Chassis
- Wide, low-profile design for increased stability
-
Steering
- High-torque waterproof Traxxas 2056 steering servo
- Spring-loaded servo saver helps protect against impacts
-
Suspension
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
-
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
-
Wheels and Tires
- Pre-glued Alias® step-pin rear tires and ribbed front tires with performance foam inserts
- 2.8" black RXT™ six-spoke wheels
- Precision Hex Hardware
